Revic EXO MOA Extreme Sight
Revic EXO MOA Extreme Sight: ½ MOA adjustable open peep sight with zero-stop and Revic ballistics for legal long-range muzzleloader precision.
The Revic EXO MOA Extreme Sight is a revolutionary open sight system designed specifically for muzzleloaders, delivering precise ballistic compensation in a 50-state-legal package. The rear peep aperture raises and lowers like a scope turret with 32.5 MOA of travel and audible/tactile ½ MOA clicks (on Gunwerks MZ5/MZ8), while pairing with a custom-etched Ballistic Data Ring (BDR) and the Revic Ops App for dead-on elevation holds out to extreme distances. Complete with a removable 0.050" peep, customizable globe front sight inserts, and seamless integration into the Revic ecosystem, the EXO transforms traditional muzzleloader irons into a fast, accurate, long-range sighting solution without optics.

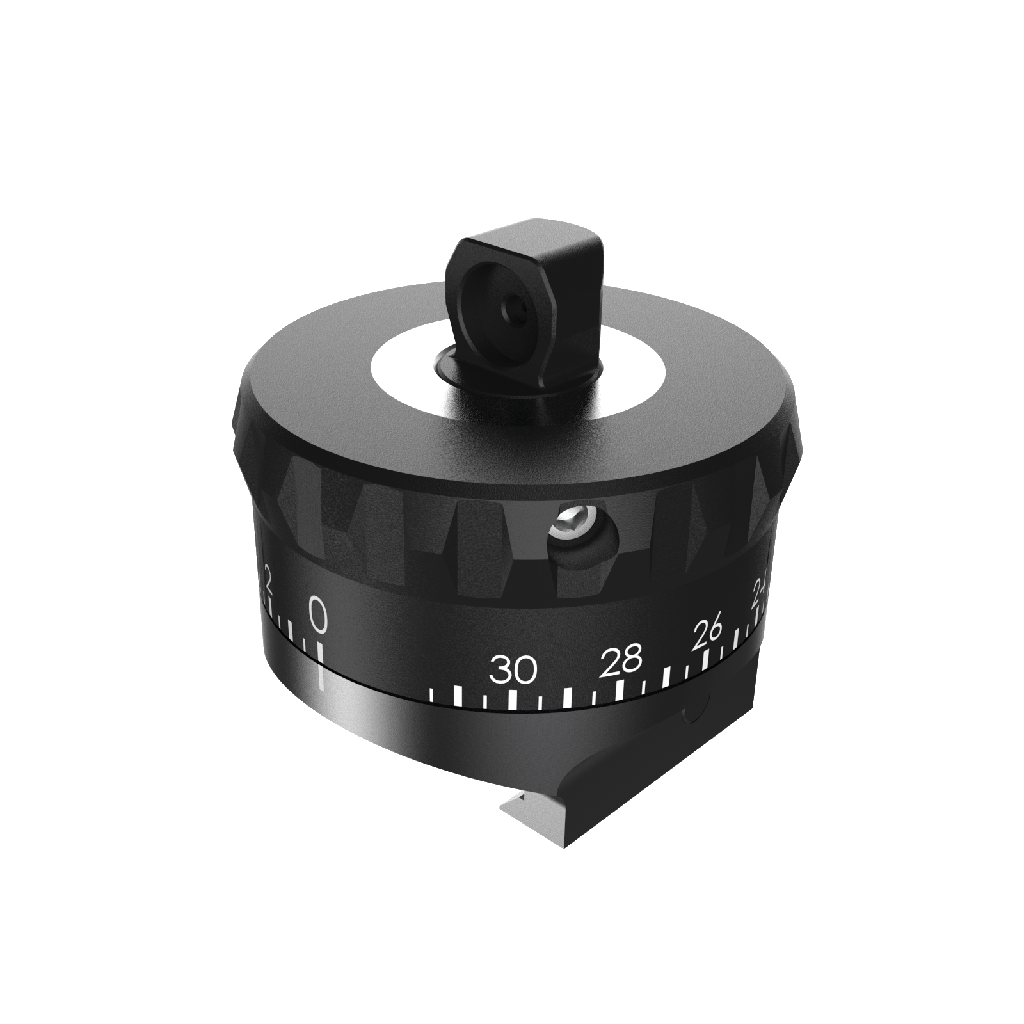

The Revic EXO MOA Extreme sight is an open sight muzzleloader ballistics system that maximizes effective shooting distance. Similar to a rifle scope elevation turret, the EXO sight raises and lowers the peep sight aperture to allow for precise aiming over varying distances.
Peep sight apertures is 0.050 in diameter, and removable with included hex wrench for a larger field of view.
Globe front sight insert card included for customizable sight picture.
32.5 MOA of adjustment travel
50 State Legal (Check your local Regulations)
Custom Ballistic Data Ring can be etched to pair with your specific muzzleloader system. Dialing becomes even more intuitive and efficient in the field with the addition of a BDR.
HOW TO USE
The EXO muzzleloader sight integrates with the REVIC ecosystem, enabling you to accurately and repeatedly adjust your firing solution.
Pair with the Revic BLR10b, BR10, BR4, and the Revic Ops App to create a precise elevation solution for your specific muzzleloader system.
For Gunwerks MZ5 and MZ8 muzzleloaders, the EXO sight adjusts in ½ MOA increments with audible and tactile clicks. For non-Gunwerks installs, each click value may vary depending on the sight radius.
To build an accurate ballistic profile in the Revic Ops App, measure your "scope height" (generally ~2 in.) from the centerline of the rear peep aperture to the centerline of the receiver.
INSTALLATION

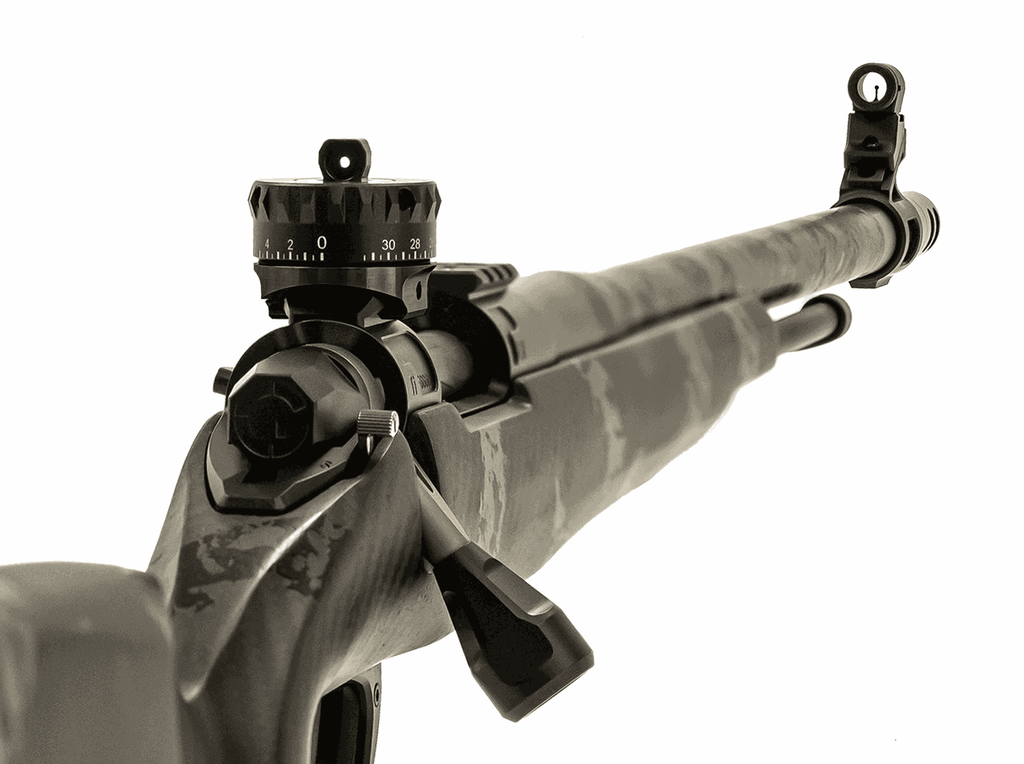

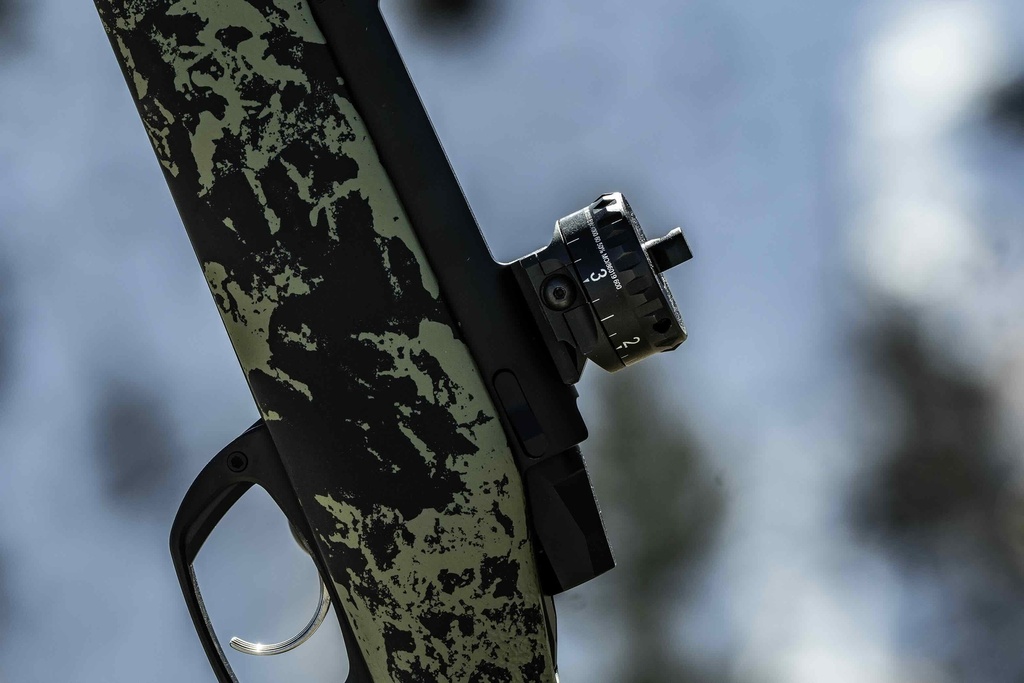

The rear sight includes an integral mounting bracket compatible with a picatinny rail or picatinny base. Sight is secured to a picatinny rail/base via a hex screw.

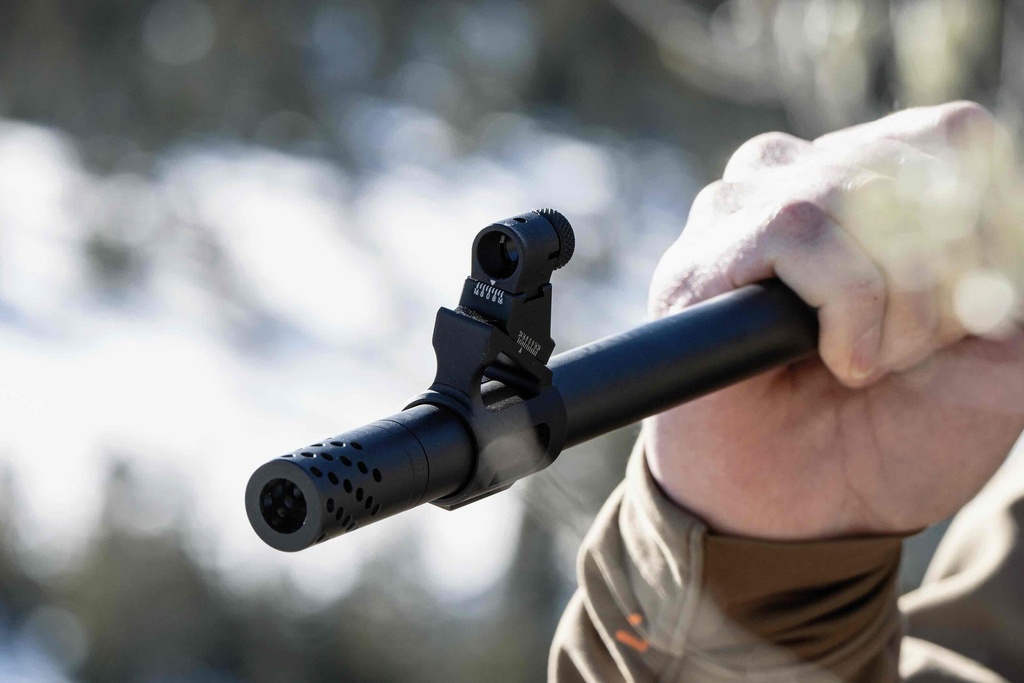

Front sight is optimized for compatibility with Gunwerks MZ5 and MZ8 muzzleloader systems. The front sight slides over the muzzle. Two set screws are then tightened into two matching reliefs in the barrel of the MZ5 & MZ8; safely securing and indexing the front sight.
Sight radius: 27 15/16 inches or 709.61 mm measured from the front globe sight reticle insert to the rear surface of the peep sight (closest to the shooter's eye). Closely matching this sight radius enables 1/2 MOA click values to be maintained.
Barrel Diameter: 22.35 mm or ~ 7/8 inches
