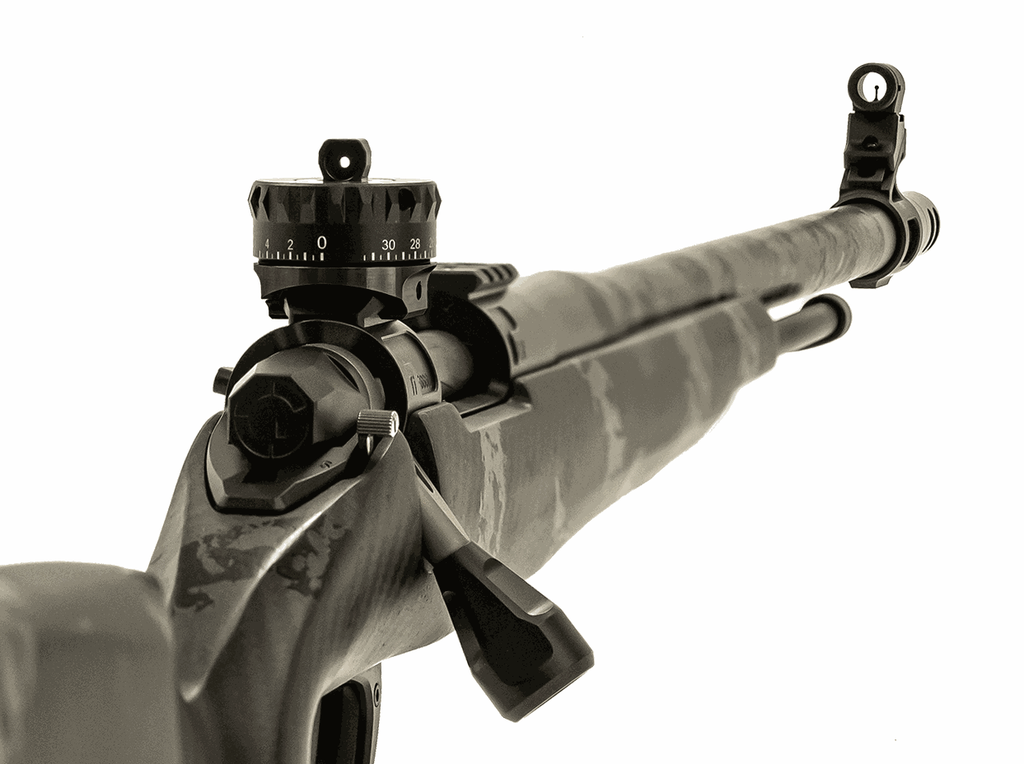

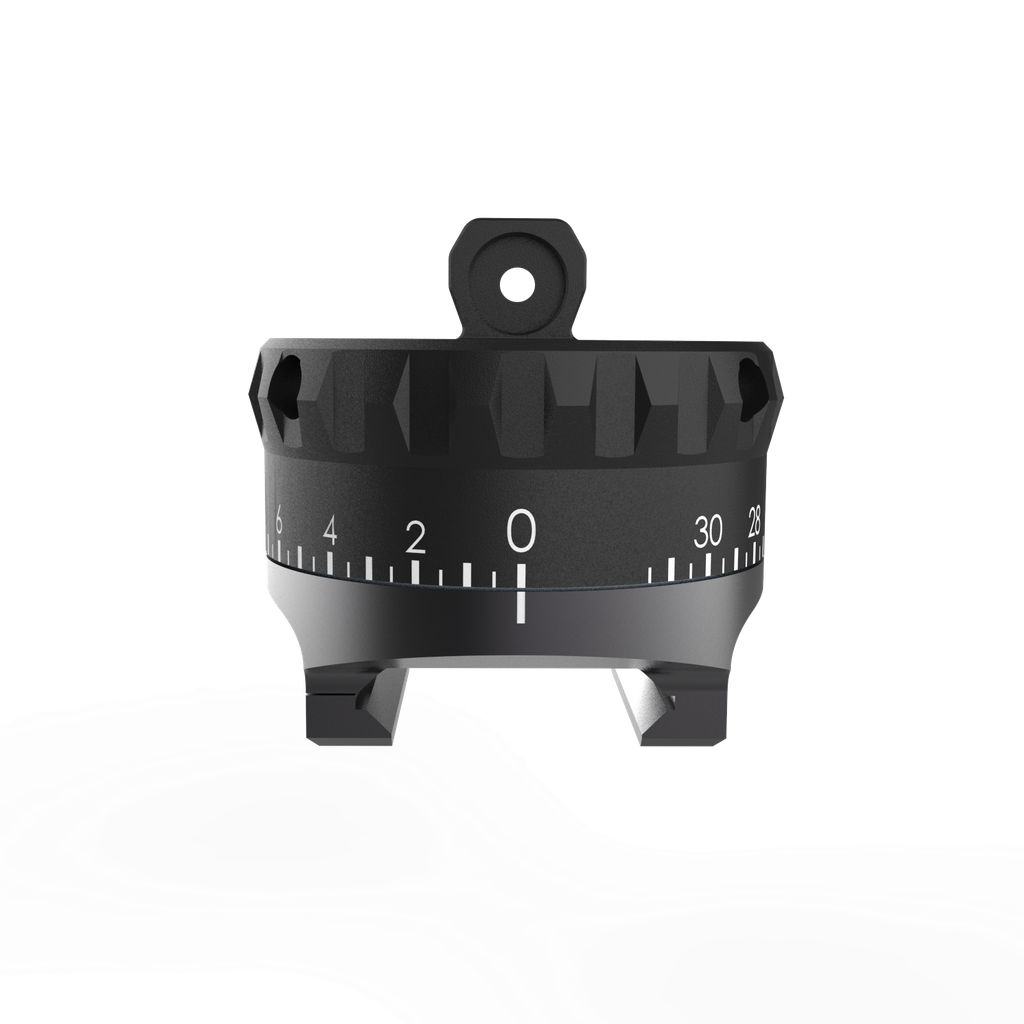

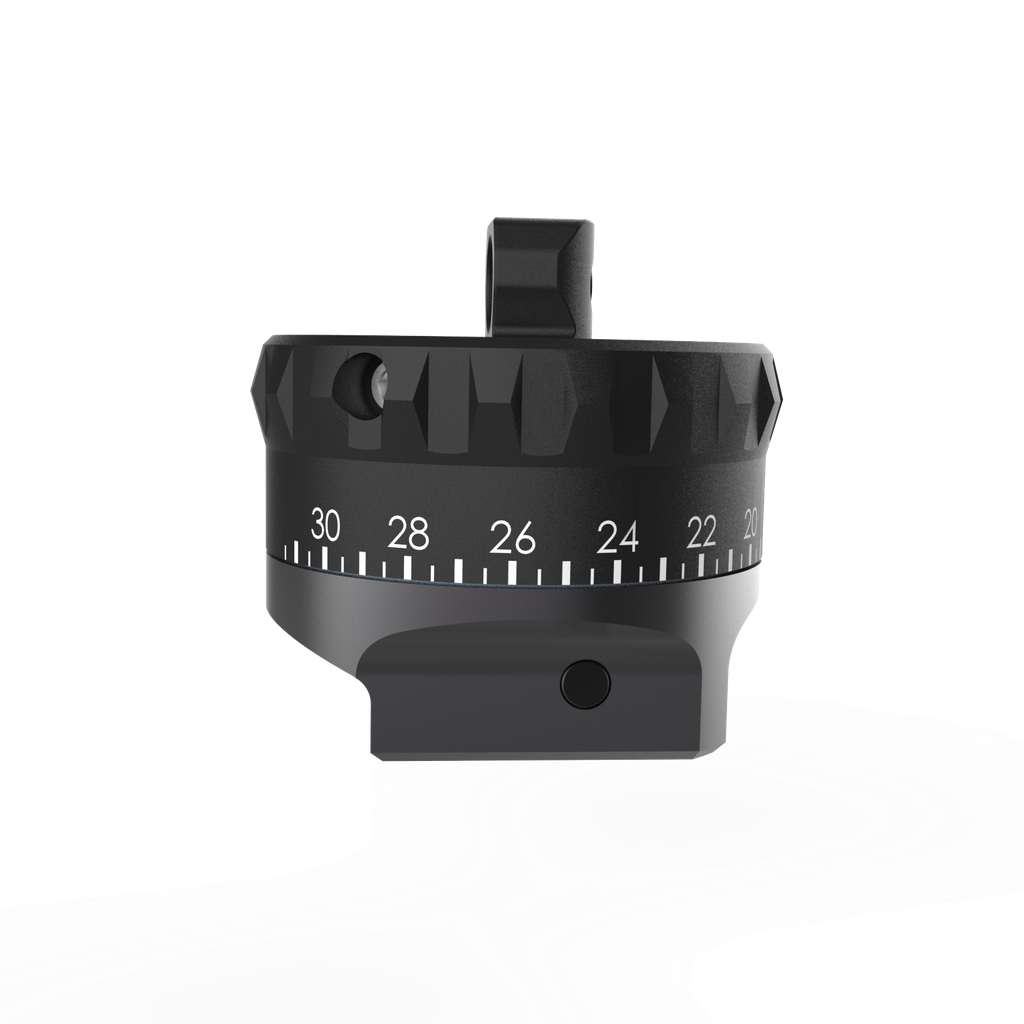

    The Revic EXO MOA Extreme sight is an open sight muzzleloader ballistics system that maximizes effective shooting distance. Similar to a rifle scope elevation turret, the EXO sight raises and lowers the peep sight aperture to allow for precise aiming over varying distances.

    Peep sight apertures is 0.050 in diameter, and removable with included hex wrench for a larger field of view.

    Globe front sight insert card included for customizable sight picture.

    32.5 MOA of adjustment travel

    50 State Legal (Check your local Regulations)

    Custom Ballistic Data Ring can be etched to pair with your specific muzzleloader system. Dialing becomes even more intuitive and efficient in the field with the addition of a BDR.


    HOW TO USE

     The EXO muzzleloader sight integrates with the REVIC ecosystem, enabling you to accurately and repeatedly adjust your firing solution.

    Use with the Revic BLR10b, BR4, and Revic Ballistic Ops App allow you to define a precise elevation solution for your specific muzzleloader system.

    For Gunwerks MZ5 and MZ8 muzzleloaders, the EXO sight adjusts in ½ MOA increments with audible and tactile clicks. For non-Gunwerks installs, each click value may vary depending on the sight radius.


    INSTALLATION

    The rear sight includes an integral mounting bracket compatible with a picatinny rail or picatinny base. Sight is secured to a picatinny rail/base via a hex screw.

    Front sight is optimized for compatibility with Gunwerks MZ5 and MZ8 muzzleloader systems. The front sight slides over the muzzle. Two set screws are then tightened into two matching reliefs in the barrel of the MZ5 & MZ8; safely securing and indexing the front sight.

    Sight radius: 27 15/16 inches Measured from the front globe sight reticle insert to the rear surface of the peep sight (closest to the shooter's eye). Matching this sight radius enables 1/2 MOA click values to be maintained.

    Barrel Diameter: 27.3 mm
